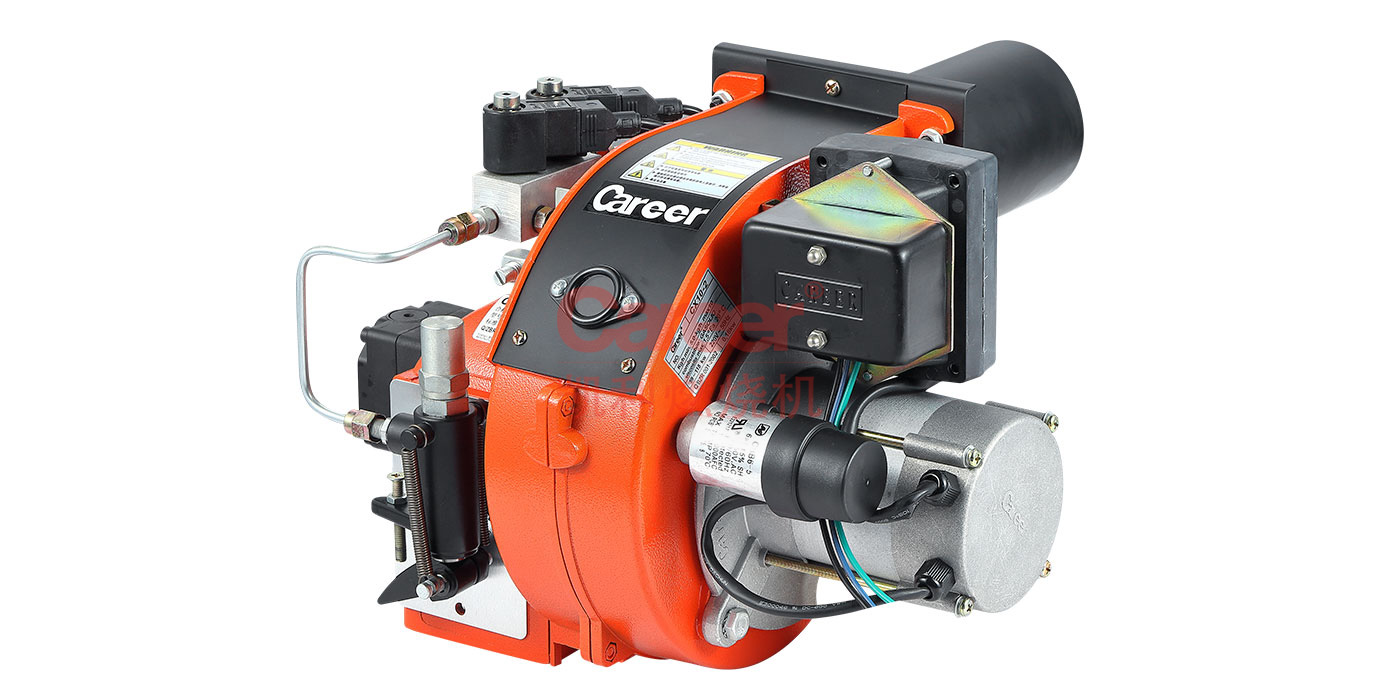

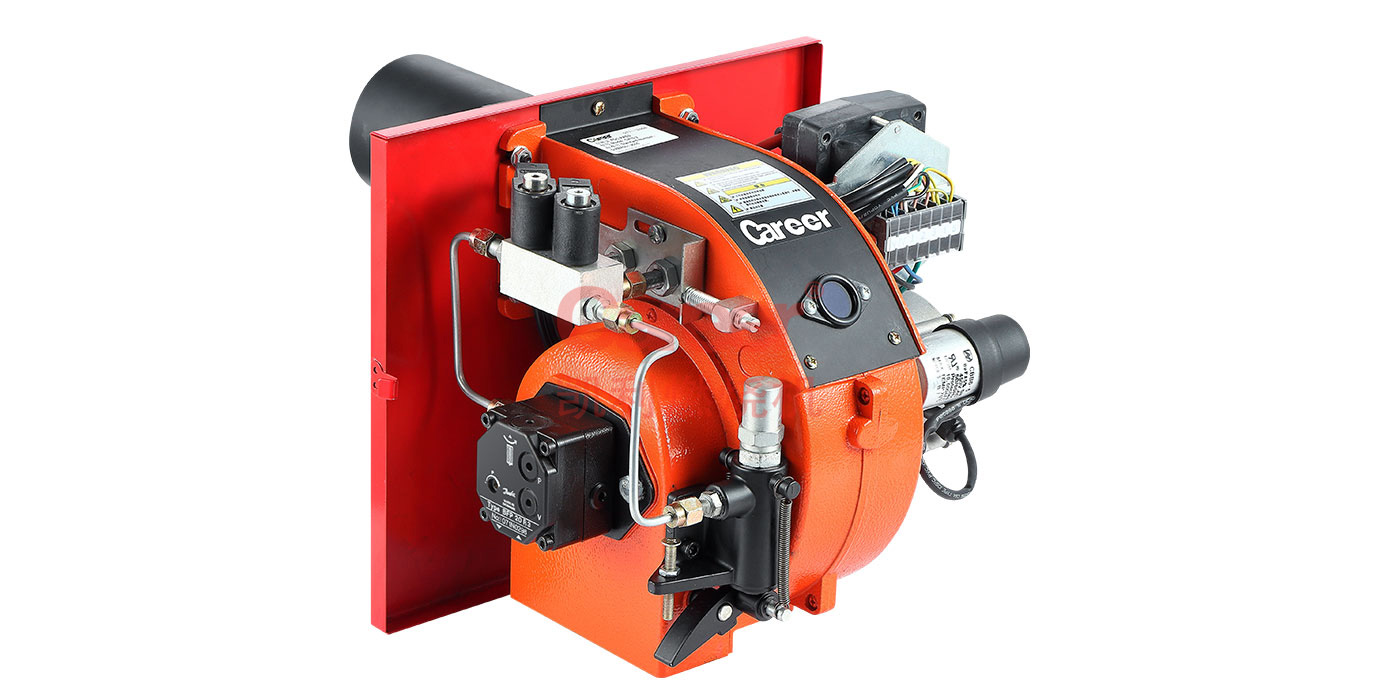

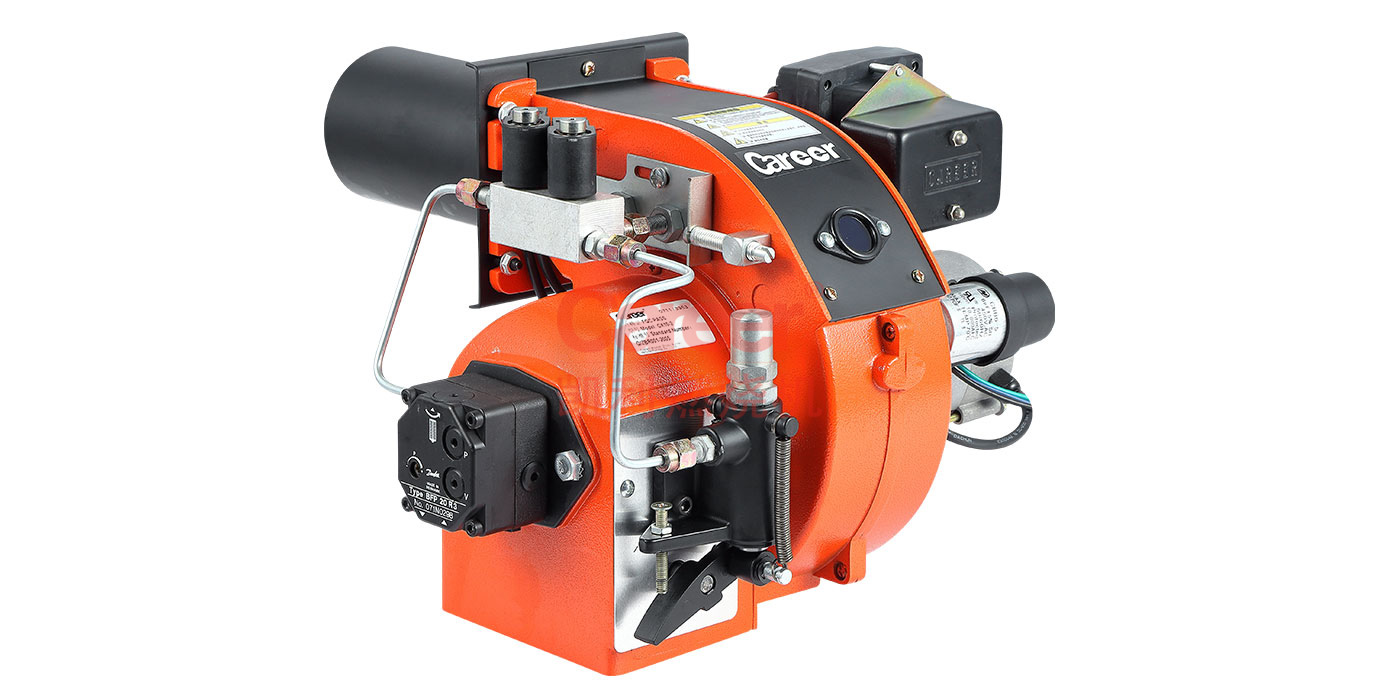

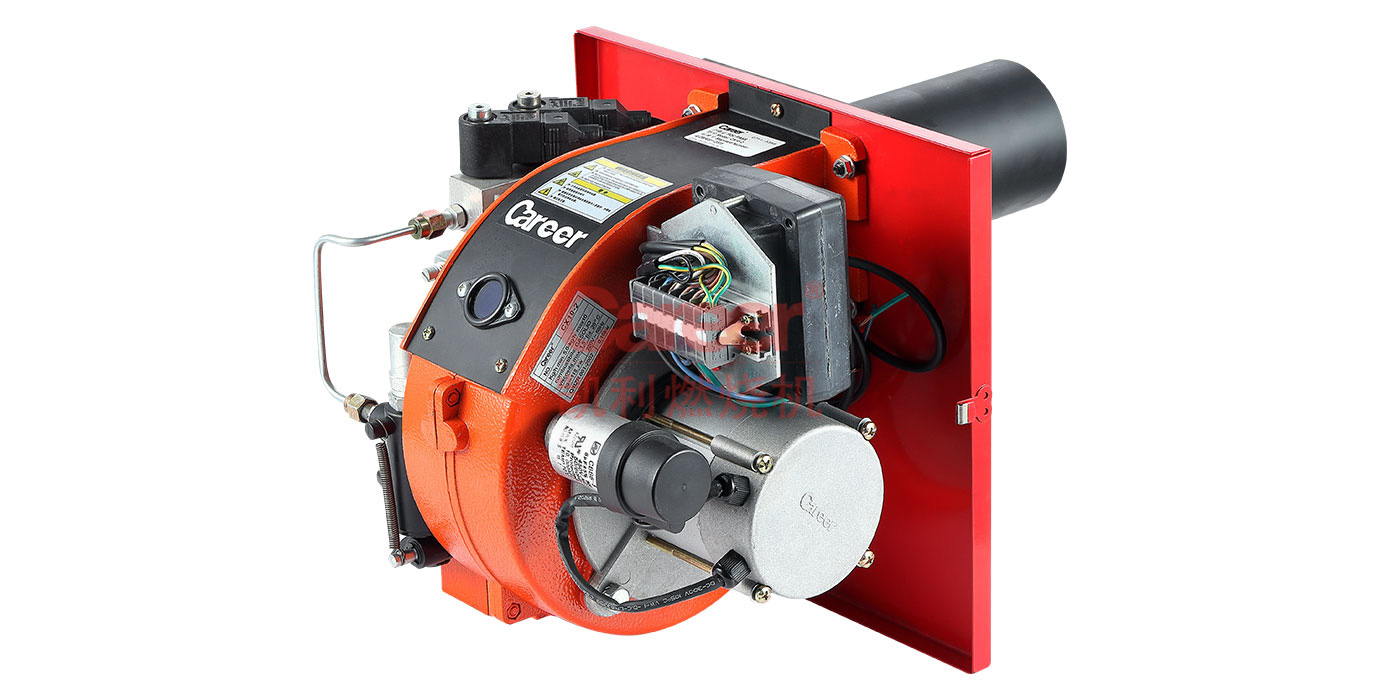

CX10-2 Double burner burner for kitchen stove

Light diesel series - CX10-2
Fuel consumption	5.0-10.0	kg/hr
Output power	59-119	kw
Heat output	51000-102000	cal/h
Motor power	180	w
Power supply	220/50	V/Hz
Control	Two stage control
Package size	360*330*500	mm
Air supply	Force draught
Fuel	light oil
Pressure	low pressure
Structure	Integrated
function
Safety protection system	Automatic controller	?
	Flame monitoring device	?
Fuel supply system	filter	?
	fuel pump	?
	pressure regulator	?
	Gas flow regulating device	?
	Automatic safety cut-off valve	?
A controlled shutdown	When the burner does not need heating, it automatically cuts off the fuel supply to realize the process of shutdown	?
Safety shutdown	When safety device response or automatic control system failure, automatically cut off the fuel supply, realize the process of shutdown	?

1.) electronic control, two fire regulation
2.) design waterproof, antifouling, high temperature resistance
3.) efficient energy-saving, more than 25-30% savings over the traditional
4.) widely used in kitchen, oven, canteen, hotel and so on

Operation method:
1.) connect the external 220V power supply, the power indicator light is red, the controller enters the standby state, presses the power button, and the power indicator light turns green, which indicates that the controller, fan and ignitor begin to work. At the same time, the small fire indicator light is also lit to green, indicating that the burner is ready to work in a state of small fire. 7 seconds later, the small fire indicator turns to orange, indicating that the burner has been working smoothly under the condition of a small fire.
2.) when the burner enters the working condition of the small fire, press the middle fire button, and the middle fire indicator light is green, and the small fire indicator goes out. A few seconds later, the middle fire indicated orange, and the burner went into the middle.
3.) if you want to quit the working state, press the power button, the power indicator light is red, which means that the burner is out of working state and in standby mode.
4.) if you do not use the burner for a long time, be sure to cut off the 220V power supply.

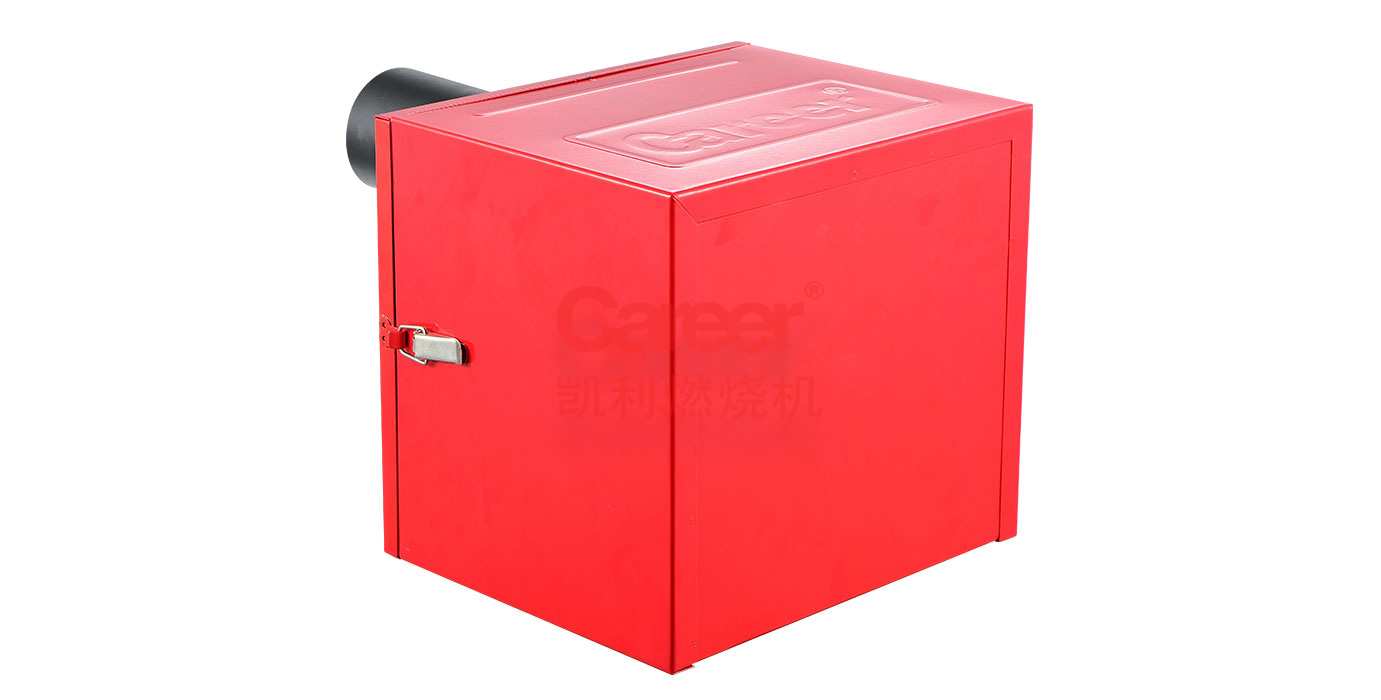

* Note: cooking water, fire machine, waterproof outer box can be matched with the guests.
* Note: the actual range of fuel consumption is affected by the internal pressure in the furnace.

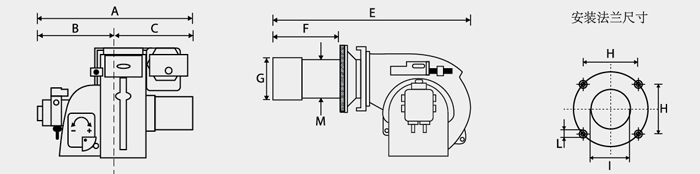

Model	Unit	A	B	C	E	F	G	H	I	J	M
CX10-2 Kitchen machine with water tank		370	205	165	420	135	89	106	90	M8	89
CX10-2 Kitchen machine does not contain water proof tank	mm	370	205	165	420	142	89	106	90	M8	89
